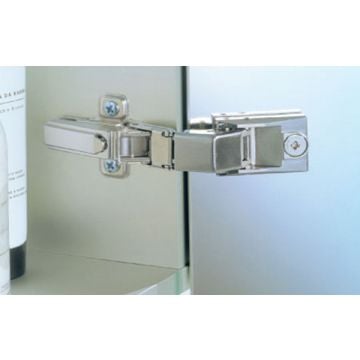

Mirror Door Hinge Sprung Standard finish

Tiomos Mirror
For glass doors or double-sided mirror doors
For overlay and inset doors
Sprung with integrated, adjustable soft closing mechanism with 3 settings
Hinge adapter 80292 s glued into position, no need to route or drill the door
Diecast nickel-plated

Installation:
Fastening to door by gluing of a zinc alloy adapter 80292 or 80293 (shown in Related Products)
of the door to the hinge by sliding onto the adapter and using a cam
door to cabinet without tools (clip system)

Adjustment facility:
Side adjustment from –2 to +2 mm
Depth adjustment from –2 to +3 mm
Height adjustment max. ±2.5 mm, depending on the mounting plate.

Mounting plates not included.

Choose mounting plates 81976 or 81977 (shown in Related Products) according to whether overlay or inset door required, and glue hinge adapter in suitable position

Note
Minimum gap F = 2 mm. Applies to hinge with factory settings, glass thickness from 3 to 8 mm with chamfered edges (r = 1 mm) and gluing dim. Z from 4 to 26 mm.

Note
All reveals must be at least 1.5 mm, otherwise there is a risk of breakage.
